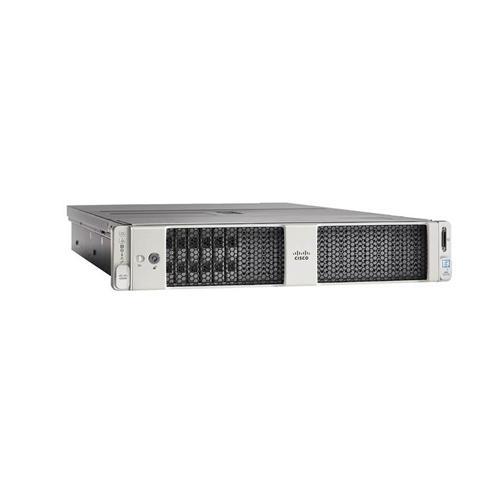

Cisco UCS C240 M5 Rack Server
Cisco UCS C240 M5 Rack Server Hyderabad
- Product Description
- General
- Built in Devices: Backplane
- Hot-Swap Bays Qty: 10
- Product Form Factor: Rack-mountable - 2U
- Server Scalability: 2-way
- Type: Server
- Dimensions & Weight
- Depth: 29.1 in
- Height:3.4 in
- Width: 17.6 in
- Expansion / Connectivity
- Bays: 10 (total) / 10 (free) x hot-swap 2.5 SFF
- Interfaces: 2 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 1 x KVM ¦ 1 x management ¦ 2 x USB 3.0 ¦ 1 x serial - RJ-45
- Slots: 2 (total) / 2 (free) x CPU ¦ 24 (total) / 24 (free) x DIMM 288-pin ¦ 6 PCIe 3.0 ¦ 1 (total) / 1 (free) x PCIe ¦ 1 (total) / 1 (free) x mLOM ¦ 2 (total) / 2 (free) x M.2 Card ¦ 5 PCIe x8 ¦ 1 PCIe x16
- Hard Drive
- Type: No HDD
- Manufacturer Warranty
- Service & Support: Limited warranty - replacement - 3 years - response time: next business day
- Networking
- Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
- Ethernet Controller: Intel X550
- Optical Storage
- Type: No optical drive
- Power
- Device Type: Power supply - hot-plug
- Installed Qty: 0
- Max Supported Qty: 2
- Power Redundancy: Optional
- Processor / Chipset
- CPU: No CPU
- CPU Upgradability: Upgradable
- Max CPU Qty: 2
- RAM
- Features: Registered, Load-Reduced DIMM (LRDIMM), through-silicon via DIMMs (TSV DIMMs)
- Form Factor: DIMM 288-pin
- Installed Size: 0 GB
- Slots: 24 (total) / 24 (empty)
- Technology: DDR4 SDRAM - ECC
- Storage Controller
- Channel Qty: 8
- Controller Interface Type: SATA 3Gb/s
- RAID Level: RAID 0, RAID 1, RAID 10
- Type: RAID
